220V CNC Spring Machine Two Axes With Max 550pcs / Min Production Speed

Product Categories

Dongguan Hua Yi Da Spring Machinery Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : HYD

Model Number : HYD-212

Certification : CE / IS09001

Place of Origin : Dongguan,China

MOQ : 1 Set

Price : Negotiable

Payment Terms : Negotiable

Delivery Time : 25 Days

Packaging Details : Standard Seaworthy Plywood Case

Wire Size Range : 0.3-1.2mm

Power AC : 3-Phase 220V

Payment Term : T/T

Port : Shenzhen,China

Production Capacity : 30 sets one month

Additional Tools : Spring Length Gauge

Contact Now

Two Axes CNC Spring Coiling Machine and Compression Spring Machine

Model	HYD-212 Two Axes
Diameter	0.3-1.2mm
Maximum diameter	30mm
The fastest production speed	550pcs/min
Wire feeding length	Unlimited
Wire feeding speed	1200m/min
Wire feed motor	1.5 KW
Cam motor	1.5KW
Screen display	Color/Chinese/English
Power	220V3p50/60HZ

Production features:

1. This machine combines precision CNC controlled servo-motion system and conveniences of mechanization.

2. This machine can make many kinds of spring products with 0.3 - 1.2mm wire size range via a simplified

machine setup and programming procedure.

3. Servo motion system and servo drive controlled

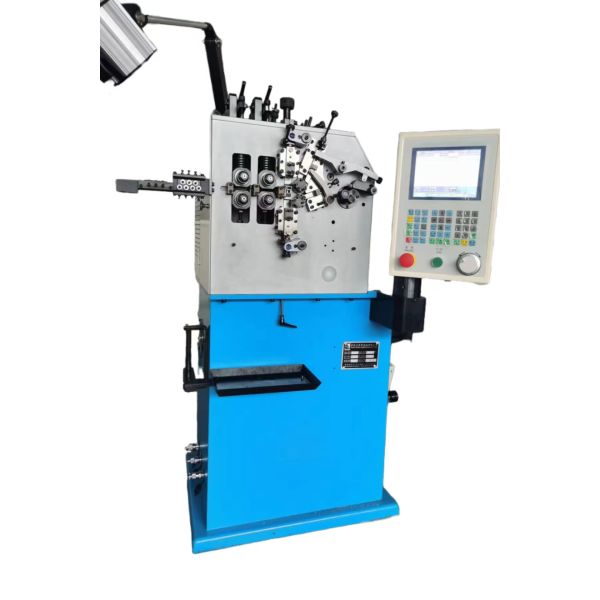

Machine Picture

220V CNC Spring Machine Two Axes With Max 550pcs / Min Production Speed

Company Details:

HYD is a production&sales located in Dongguan,which regarded as the town of spring machine,we are with

more than15 years and now it is being one of the most experienced and reliable CNC spring machine

supplier at home and abroad.
